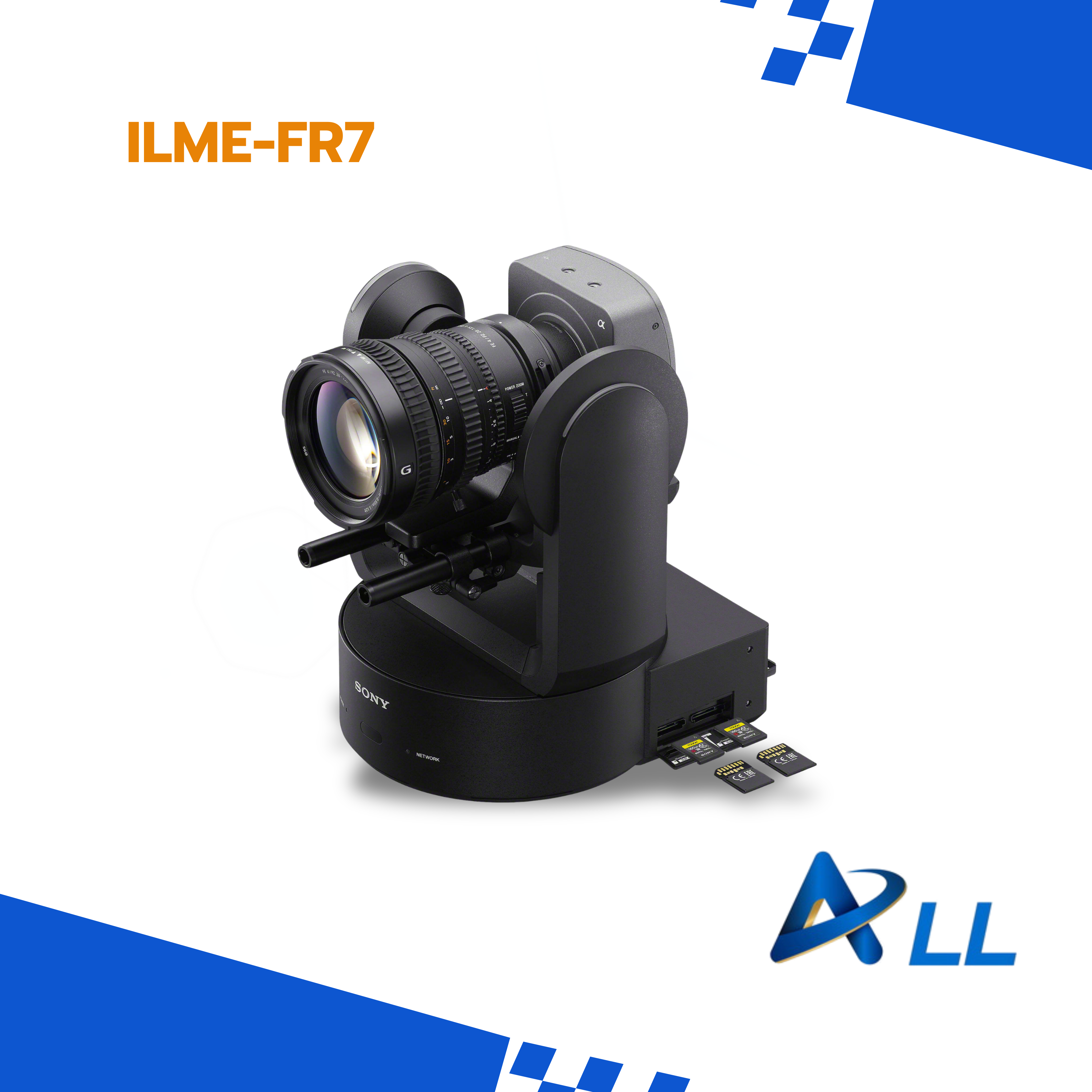

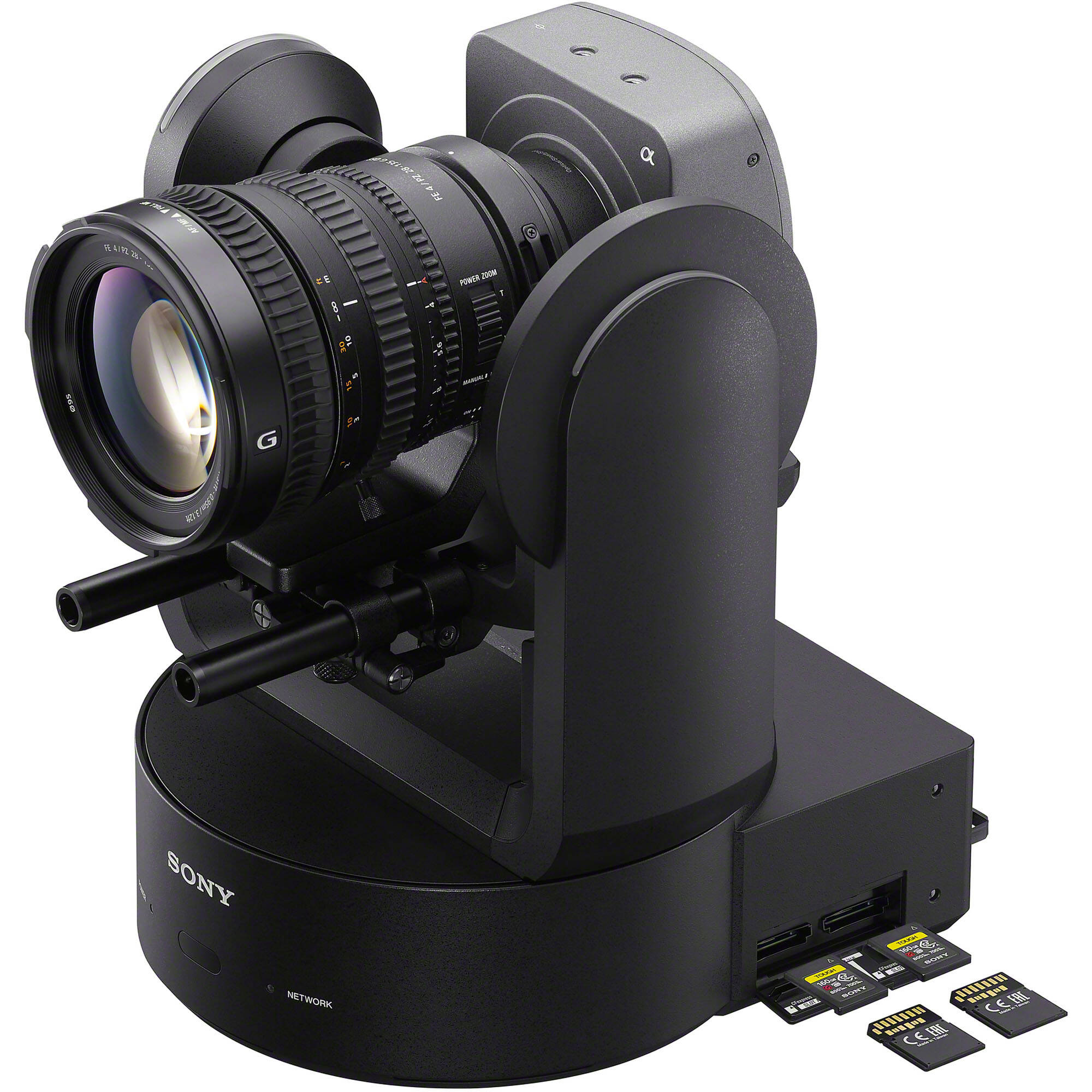

Sony FR7 Full-frame PTZ Interchangeable Lens cameraSpecifications
Introducing Cinema Line FR7 | Sony | α - YouTube
Size & Weight
- WEIGHT (MAIN UNIT ONLY) (APPROX.)
- Approx. 4.6 kg (10 lb 2.3 oz.) (body only)

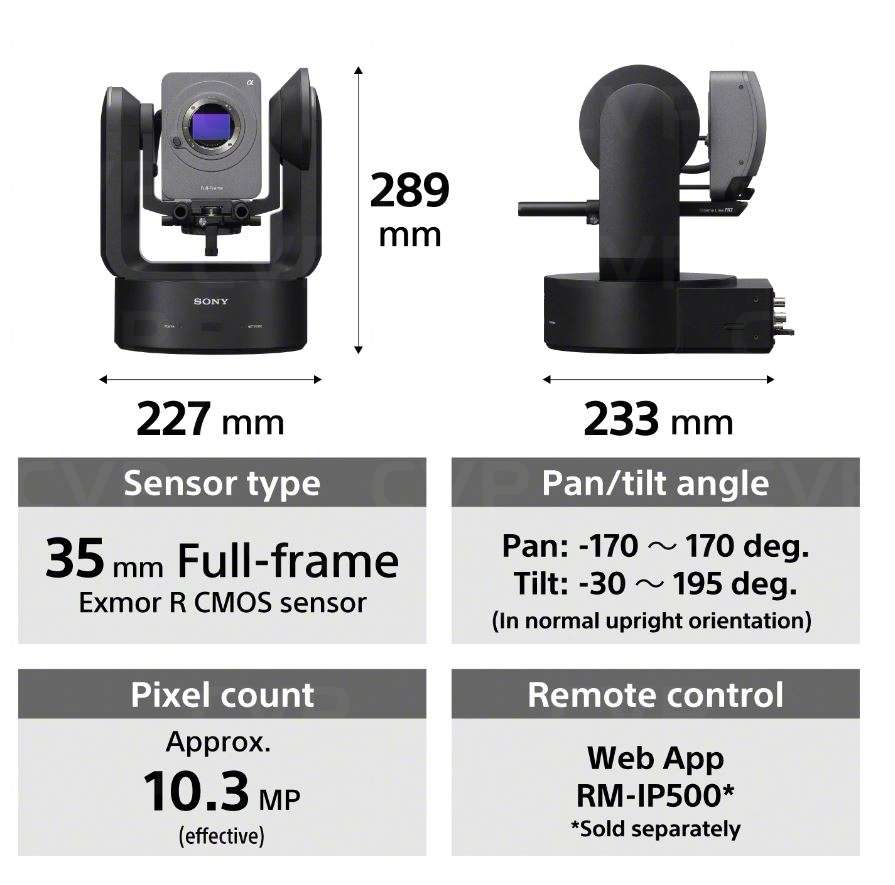

- DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (APPROX.)
- Approx. 227 x 289 x 233 mm (9 x 11 1/2 x 9 1/4 inch) (body without protrusions)
Power
- POWER REQUIREMENTS
- DC 19.5 V, PoE++ (IEEE802.3bt Type 4 Class 8 comliant) 41.1 V～57.0 V
- POWER CONSUMPTION
- ≦80 W (DC 19.5 V) / ≦71.3 W (PoE++)
Operation
- OPERATING TEMPERATURE
- 0 °C to 40 °C (32 °F to 104 °F)
- STORAGE TEMPERATURE
- -20 °C to +60 °C (-4 °F to +140 °F)
- CEILING MOUNT
- Yes (with Ceiling Bracket option)
- TALLY LAMP
- Left (x1)/Right (x1), Red/Green
Recording Format (Video)
- XAVC INTRA
- XAVC-I DCI4K 59.94p mode: VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 59.94p mode:CBG, MAX bit rate 222 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 50p mode:CBG, MAX bit rate 223 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 29.97p mode:CBG, MAX bit rate 111 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 25p mode:CBG, MAX bit rate 112 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 23.98p mode:CBG, MAX bit rate 89 Mbps, MPEG-4 AVC/H.264
- XAVC LONG
- XAVC-L QFHD 29.97p/25p/23.98p mode:VBR, MAX bit rate 100 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 59.94p/50p mode:VBR, MAX bit rate 150 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 50 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 35 Mbps, MPEG-4 H.264/AVC
Recording Format (Audio)
- RECORDING FORMAT (AUDIO)
- LPCM 24 bits, 48 kHz, 4 channels
Recording Frame Rate
- XAVC INTRA
- XAVC-I DCI4K mode:4096 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, 24p, XAVC-I QFHD mode:3840 x 2160/59.94p, 50P, 29.97p, 23.98p, 25p, XAVC-I HD mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p
- XAVC LONG
- XAVC-L QFHD mode:3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, XAVC-L HD 50 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p, XAVC-L HD 35 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p
Recording/ Playback Time
- XAVC INTRA
- XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB) Approx. 30 minutes When using CEA-G80T (80 GB) Approx. 15 minutes, XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB) Approx. 36 minutes When using CEA-G80T (80 GB) Approx. 17 minutes, XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB) Approx. 29 minutes, XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB) Approx. 35 minutes, XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes, XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes, XAVC-I HD 59.94p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes, XAVC-I HD 50p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes, XAVC-I HD 29.97p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes, XAVC-I HD 25p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes, XAVC-I HD 23.98p When using CEA-G160T (160 GB): Approx. 185 minutes When using CEA-G80T (80 GB) Approx. 91 minutes,
- XAVC LONG
- XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB): Approx. 170 minutes When using CEA-G80T (80 GB) Approx. 86 minutes, XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB): Approx. 115 minutes When using CEA-G80T (80 GB) Approx. 57 minutes, XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 320 minutes When using CEA-G80T (80 GB) Approx. 155 minutes, XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 430 minutes When using CEA-G80T (80 GB) Approx. 210 minutes
- PROXY AUDIO
- XAVC Proxy: AAC-LC, 128 kbps, 2 channels
- PROXY VIDEO
- XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9 Mbps
Camera Section
- SENSOR TYPE
- 35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor
- PIXELS
- Approx. 12.9 megapixels (total), Approx. 10.3 megapixels (effective)
- BUILT-IN OPTICAL FILTERS
- Clear, linear variable ND (1/4ND to 1/128ND)
- SENSITIVITY
- ISO 800/12800 (Cine EI mode, D55 Light source)
- SHUTTER SPEED
- 64 frame to 1/8000 sec.
Slow & Quick Motion
- XAVC-I
- 4096 x 2160: 1 to 60 frames (59.94/50/29.97/25/24/23.98)
- XAVC-I/L
- 3840 x 2160: 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98), 1920 x 1080: 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)
White Balance
- WHITE-BALANCE MODES
- Preset, Memory A (2000K-15000K)/ATW
Exposure
- GAIN CONTROL
- -3 to 30 dB (every 1dB), AGC
Gamma
- GAMMA CURVE
- SDR Mode: S-Cinetone, Standard, Still, ITU709 / HDR mode : HLG_Live, HLG_Natural
Focus System
- TYPE
- Fast Hybrid AF (phase-detection AF / contrast-detection AF)
- FOCUS POINT
- 627 points
- FOCUS AREA
- Wide / Zone / Flexible Spot
- OTHER FOCUS FEATURES
- Eye AF (Human), Real-time Tracking AF, AF Subj. Shift Sensitivity, AF Transition Speed, Face detection (Face/Eye Priority, Face/Eye Only AF )
Pan/Tilt
- PAN/TILT ANGLE
- Pan: -170 deg.~170 deg., Tilt: -30 deg.~195 deg.,
- PAN/TILT SPEED
- Pan: 0.02 deg.~60 deg./s, Tilt: 0.02deg.~60 deg./s
- PAN/TILT OPERATION NOISE
- NC35 or less
Other Features
- CLEAR IMAGE ZOOM
- QFHD/4K: 1.5x, HD: 2x
WebAPP
- SUPPORTED OPERATION SYSTEMS
- Windows 10 or later, macOS 10.15 or later, iPadOS 15 or later, Android 12 or later
- SUPPORTED WEB BROWSERS
- Windows: Google Chrome, Mac: Google Chrome/Safari, iPad: Google Chrome/Safari, Android: Google Chrome

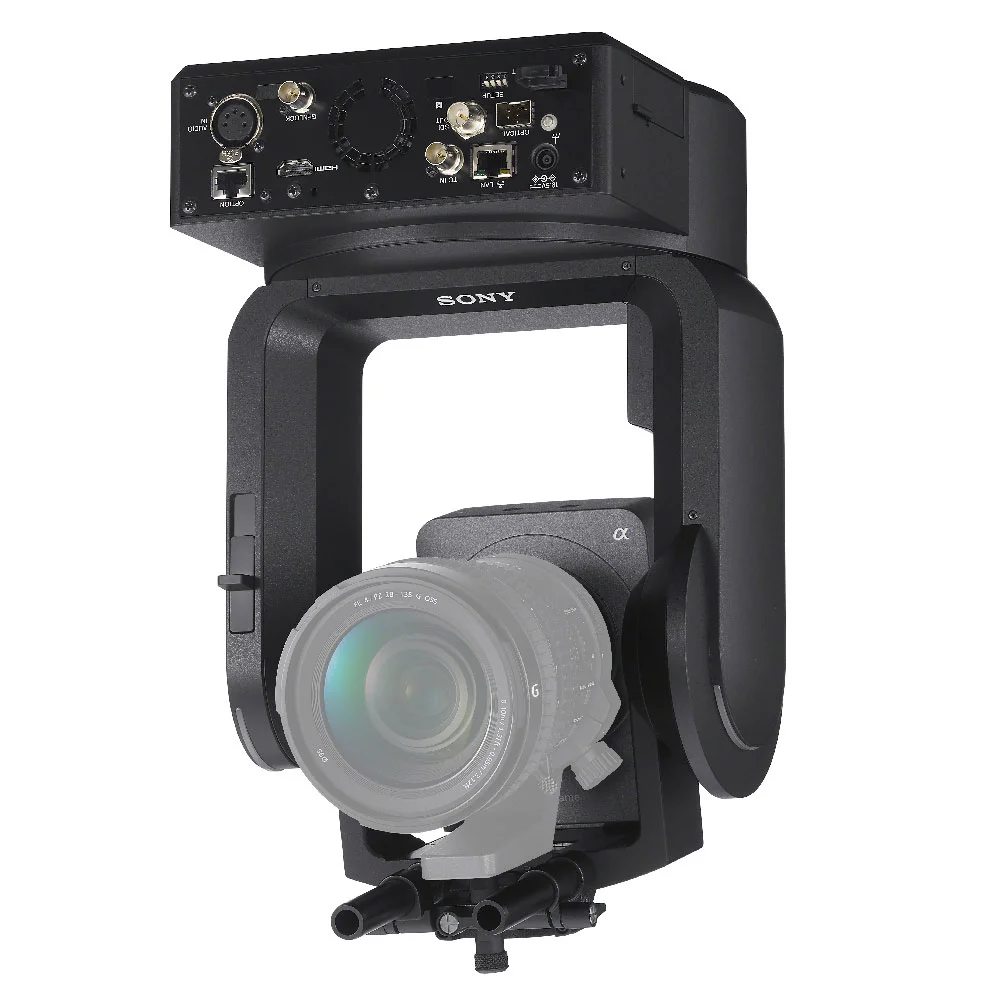

Interface
- TC INPUT/TC OUTPUT
- BNC (x1), TC IN only
- AUDIO INPUT
- XLR-type 5-pin (female) (x1) line/mic/mic +48 V selectable, Mic Reference: -30 to -80 dBu
- SDI OUTPUT
- BNC (x1), 12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI
- DC INPUT
- DC jack (x1)
- HDMI OUTPUT
- Type-A connector (x1)
- REMOTE
- RJ-45(OPTION) (x1), Red Tally IO/Green Tally IO
- GENLOCK INPUT
- BNC (x1), 1.0 Vp-p, 75 Ω
- OPTICAL OUTPUT
- SFP+ comliant
- NETWORK
- RJ-45(LAN) (x1), 1000BASE-T
- IR REMOTE CONTROL
- Yes
Output Format
- SDI
- 4096 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p / 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p / 1920 x 1080 : 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 29.97PsF, 25PsF
- HDMI
- 4096 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p / 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p / 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p / 720 x 480: 59.94p / 720 x 576: 50p
Media
- MEDIA TYPE
- CFexpress Type A / SD card (x2)
Network/IP Streaming
- PROTOCOLS (IPV6)
- TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS
- PROTOCOLS (IPV4)
- TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI|HX, FTP, FTPS
- VIDEO RESOLUTION
- 4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360
- COMPRESSION FORMAT
- H.264: High/Main/Baseline Profile, H.265: Main/Main10 Profile
- MAXIMUM FRAME RATE
- H.264/H.265: 59.94fps
- BITRATE CONTROL MODE
- CBR/VBR
- BITRATE SETTING
- 512 Kbps~80 Mbps
- NDI|HX CAPABILITY
- Yes, optional
|
