FLOW2000 SWIT SDI&HDMI 2000ft/600m Wireless System (ระยะ 600 เมตร)

SDI&HDMI 2000ft / 600m (LOS)

FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 2000 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

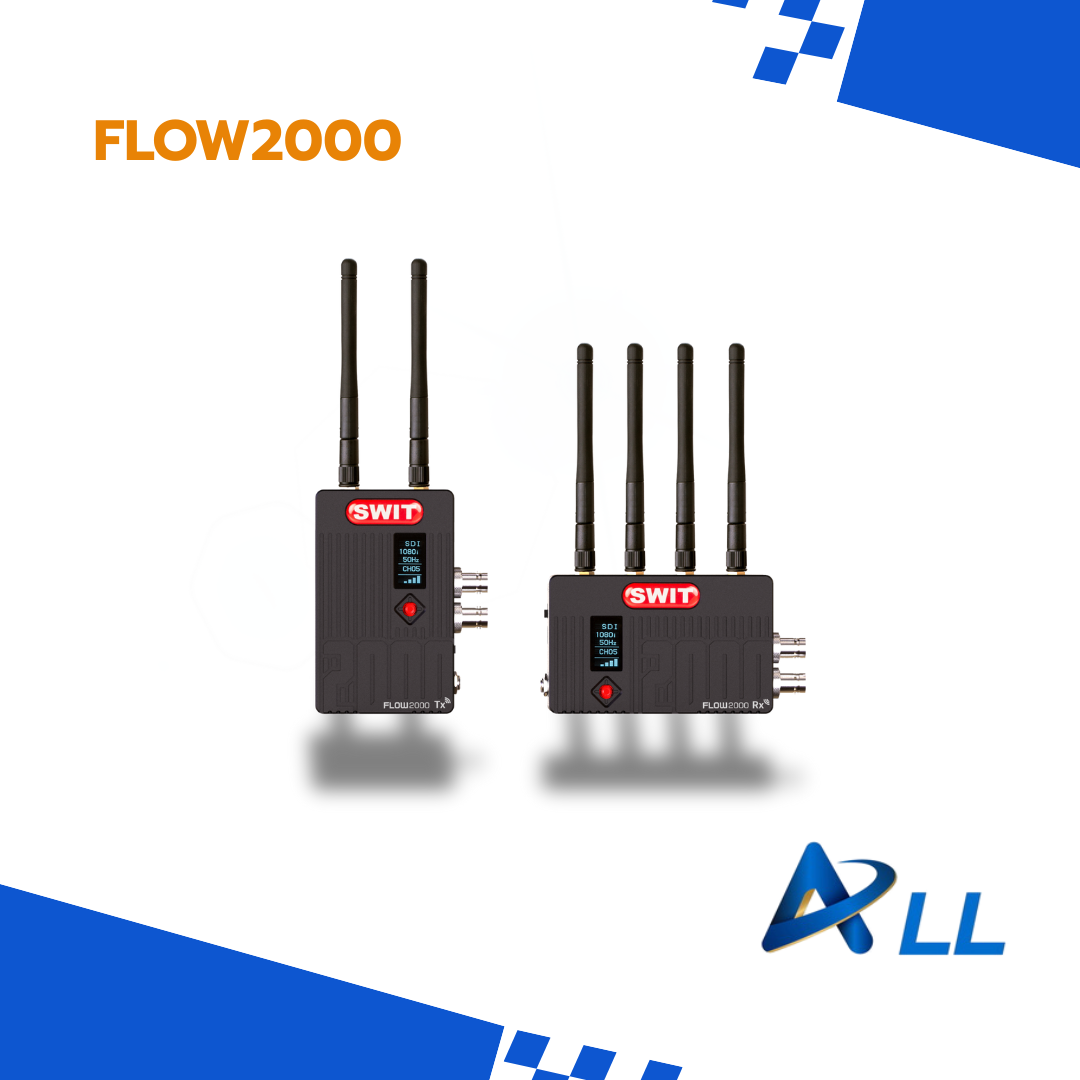

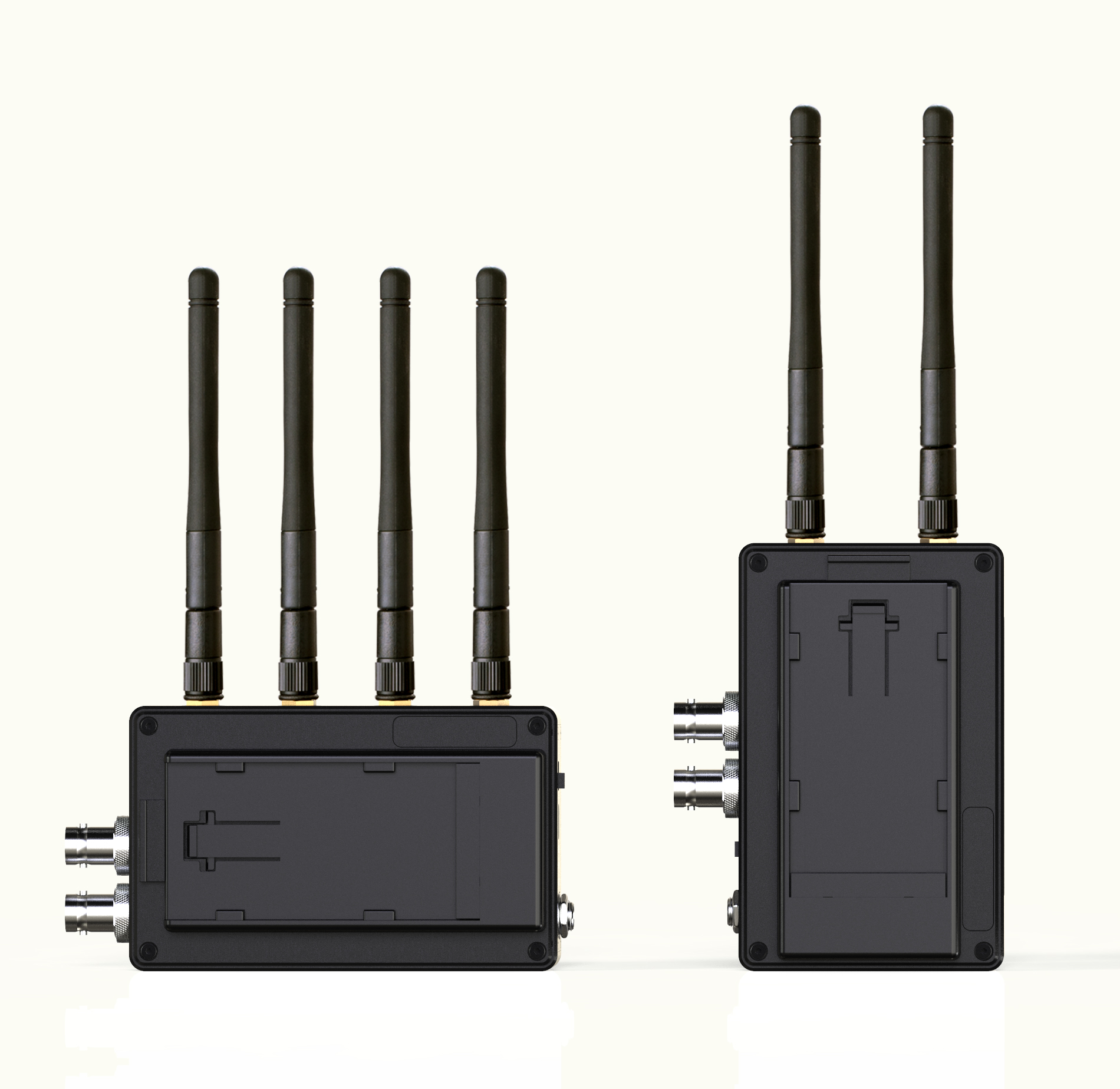

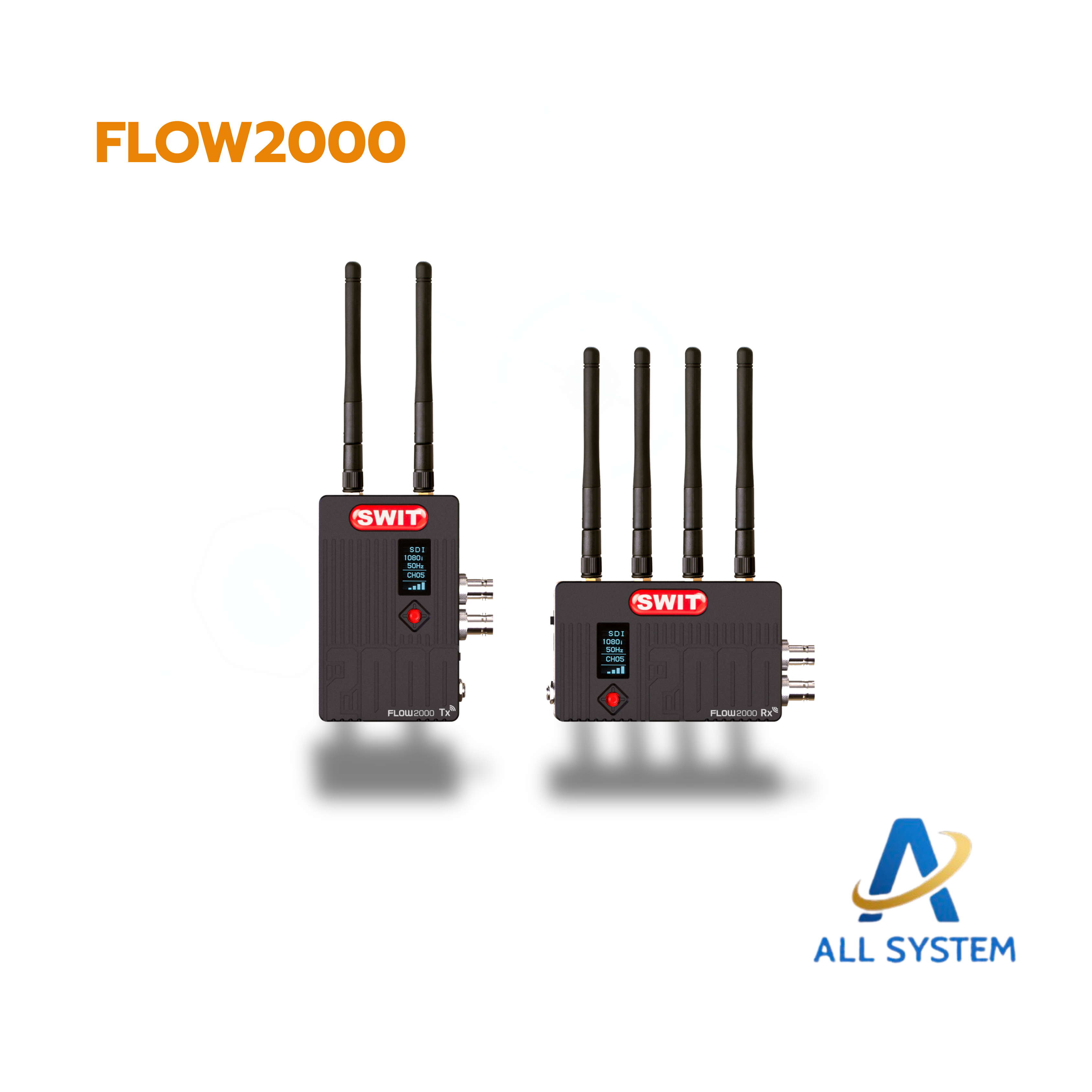

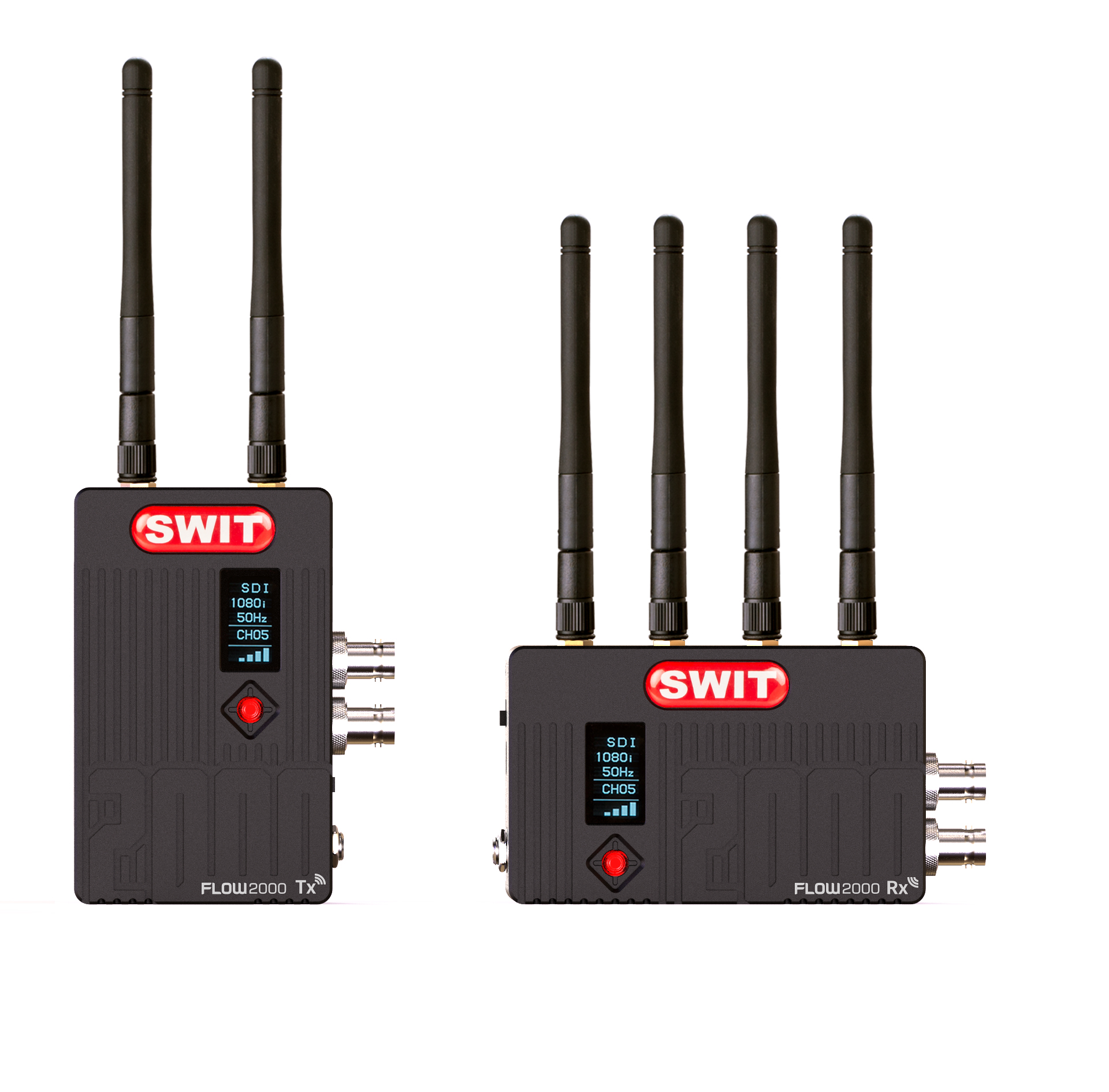

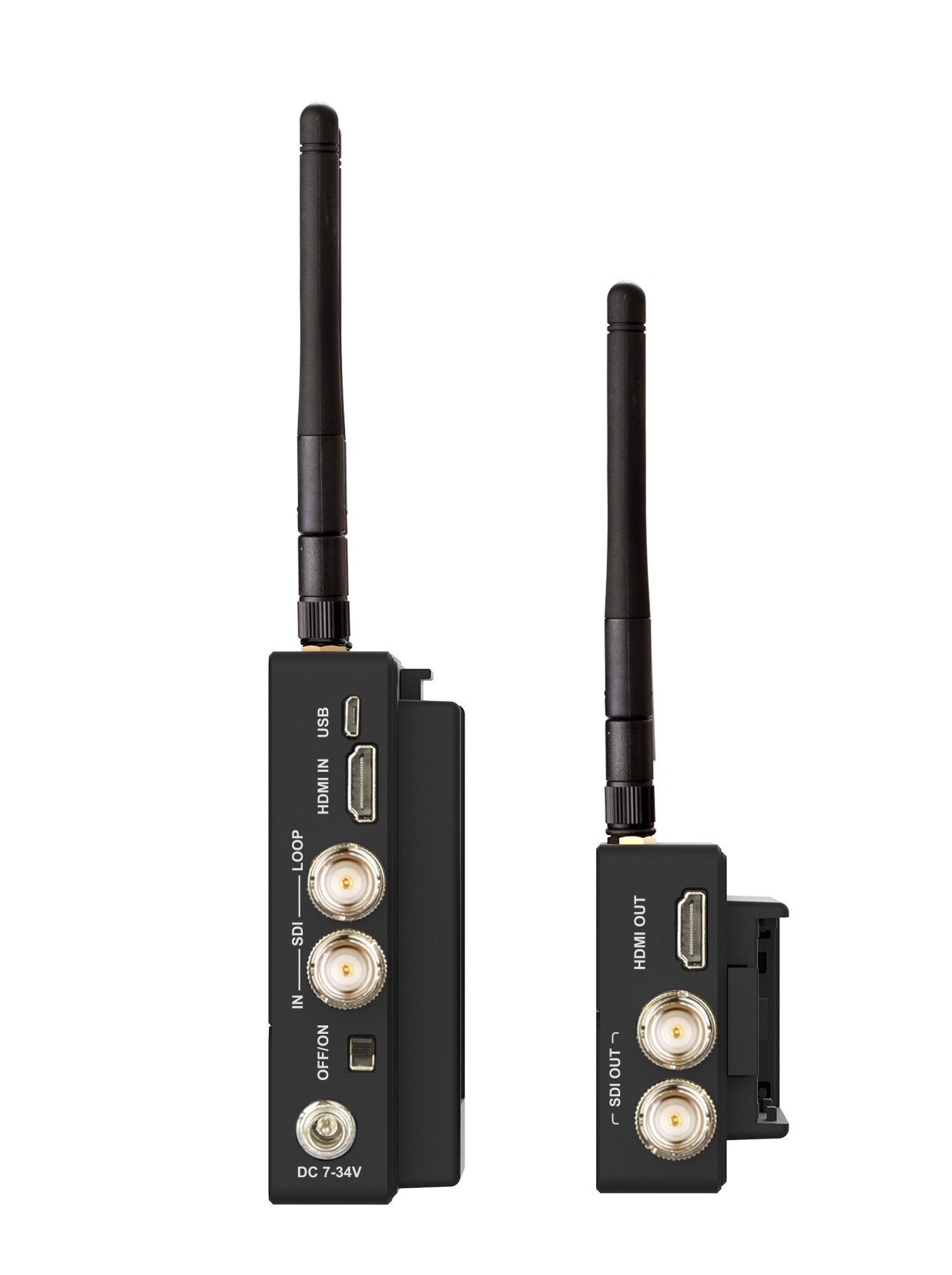

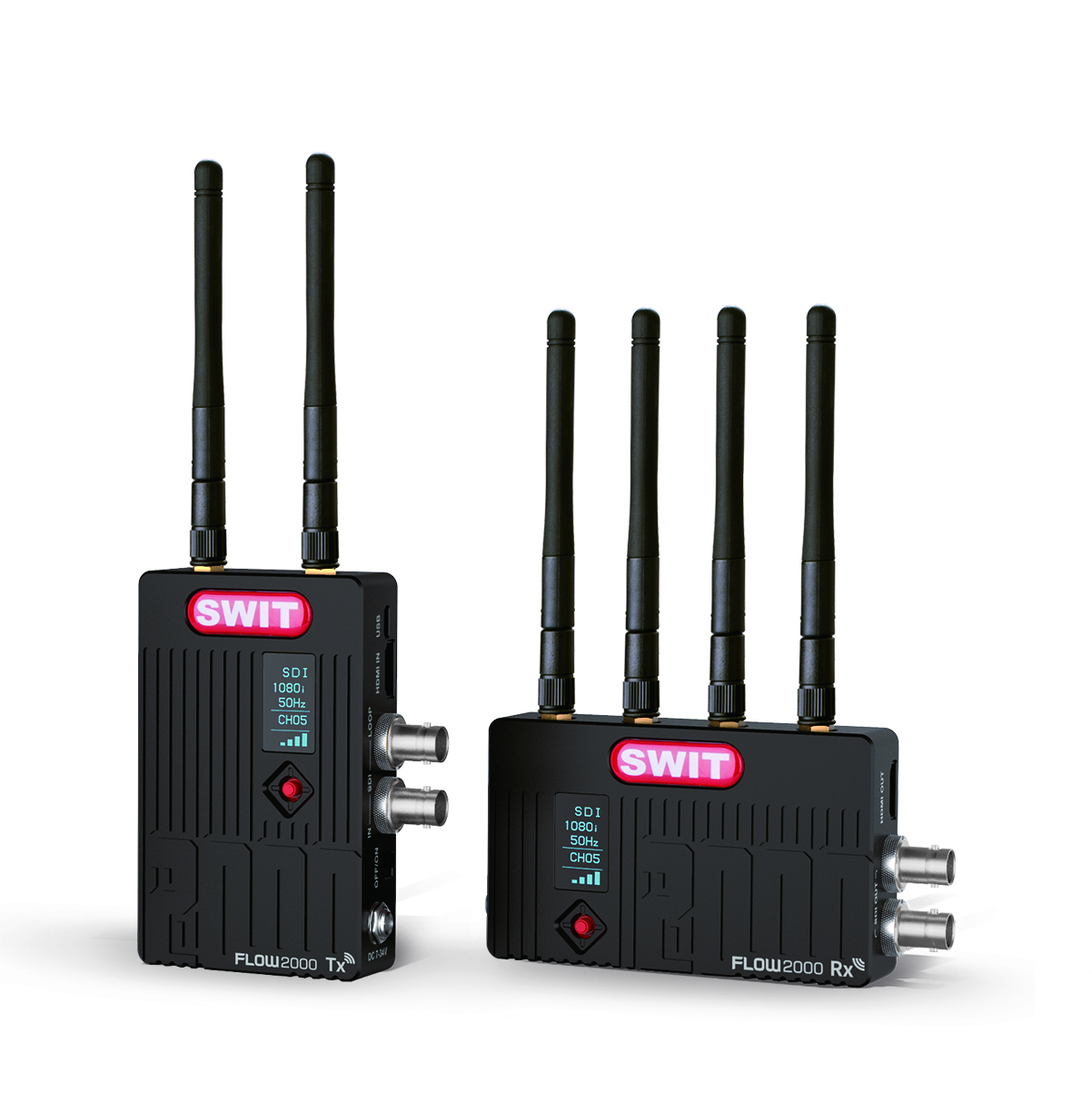

The Transmitter (Tx)
has 2 omni antennas, supports

1x 3G/HD-SDI input

1x 3G/HD-SDI loop output

1x HDMI 1.3 input



The Receiver (Rx)
has 4 omni antennas, supports

2x 3G/HD-SDI output

1x HDMI 1.3 output



1080p60, 1080p59.94, 1080p50

1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;

1080psf23.98, 1080psf24

1080i60, 1080i59.94, 1080i50;

720p60, 720p59.94, 720p50



Strong Wall-cross Performance

FLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.



FLOW2000	Transmitter	Receiver
Input	3G/HD-SDI ×1	/
	HDMI×1
Output	3G/HD-SDI loop ×1	3G/HD-SDI ×2
		HDMI×1
Format	1080P (60 / 59.94 / 50)	The same as transmitter inputs
	1080i (60 / 59.94 / 50)
	1080p (30 / 29.97 / 25 / 24 / 23.98)
	720p (60 / 59.94 / 50)
Wireless frequency	5.17GHz-5.23GHz and 5.75GHz-5.83GHz
Radio modules	OFDM 16QAM, 64QAM, QPSK, BPSK
Transmission distance	2000 feet / 600 meters (Line of sight)
Power consumption	≤8W	≤8W
Radio power	125mW	/
Input voltage	DC 7～34V	DC 7～34V
Working environment	Temperature: 0°C -+40°C
Dimension (w/o antenna)	66×106.5×24.7 (mm)	106.5×66×24.7 (mm)
Net weight	236g	245g
